31 Ford 31 Ford 53 Ford F-100 Pickup
Mopar Suspension Install Page 3



<<   < - 1 - 2 - 3 - 4 - 5 - >   >>
Installation By: Roger Mingle

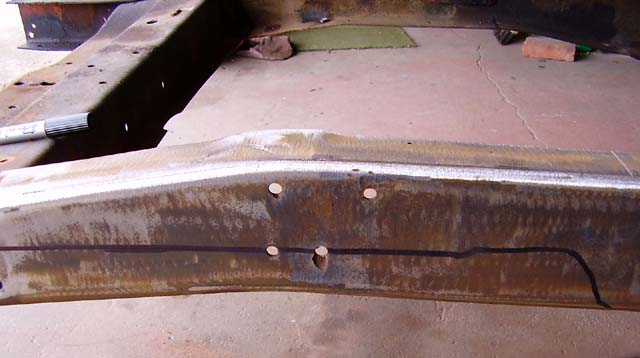

Pic 20

I made a pattern of the contour of the subframe, marked the centerline point & marked the F-100 frame where to cut.

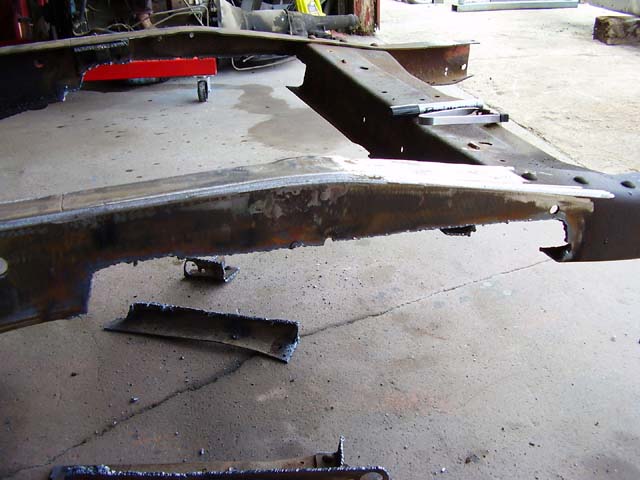

Pic 21

To late to turn back now.

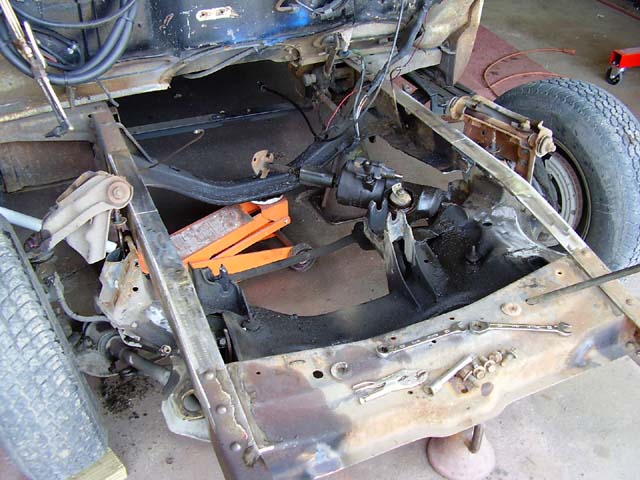

Pic 22

You need to unhook the steering box and lay it to the side. Unbolt the upper A-arms and lower the frame & check the fit.

Pic 23

Raise it back up and grind a little clearance. You might have to do this several times.

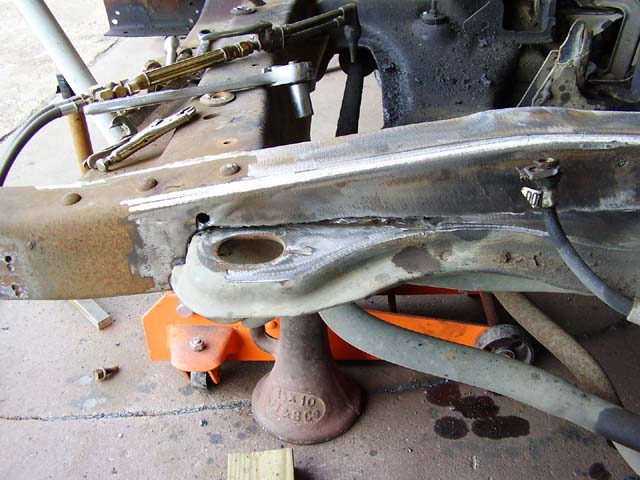

Pic 24

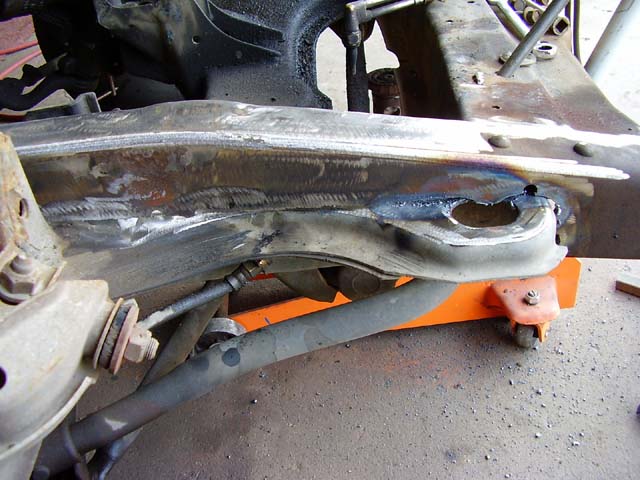

Pic 25

Starting to come together a little bit.

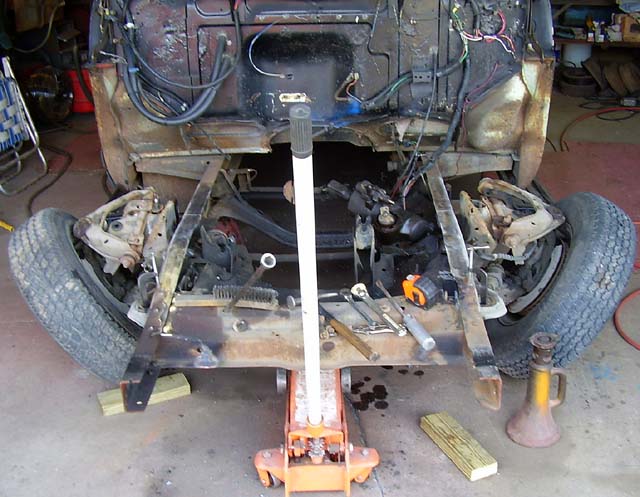

Pic 26

Alignment might be a little off.

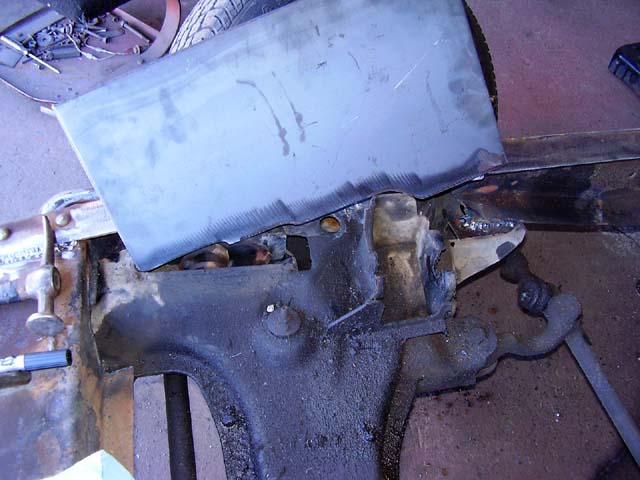

Pic 27

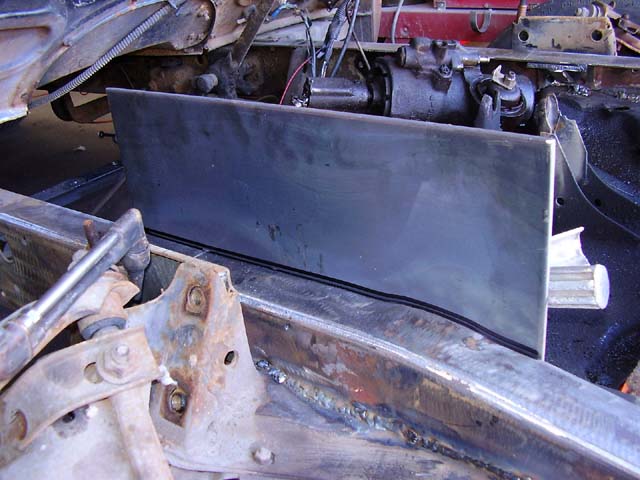

Pic 28

After welding inside & out, I use 1/4" steel plate to box the frame in.

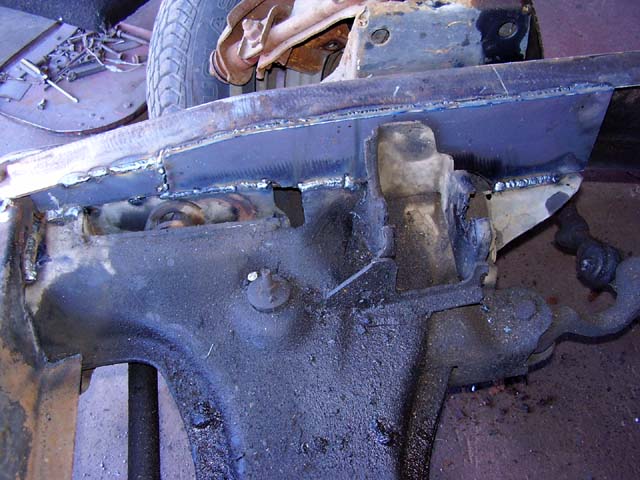

Pic 29

Welded in place.

Pic 30

I like to cut gusset plates to box in the upper A-arm mounts.

Installation By: Roger Mingle

<<   < - 1 - 2 - 3 - 4 - 5 - >   >>
